A unique
3D printer,
that combines
3 in 1

1

Precision mechanism

2

Mixing system

3

Unique software

All you need
to start
3D construction

1

Electricity

2

Water

3

Special dry building mixture

Innovative capabilities
of the UTU 3D printer

1

Innovative precision
and speed of movement

SCARA's unique design provides the high print speed and accuracy, making the 3D printer ideal for the situations where time saving is critical.

2

High quality
mortar

The specially developed mortar is being prepared in the printer directly, so the printer does not need additional equipment, which significantly saves money for its purchase and operation.

The CERESIT dry building mixture from Henkel Bautechnik ensures an ideal consistency of the mortar and uniform solidification of concrete without cracks. The high speed of solidification.

3

Enhanced printing capabilities

Due to the latest engineering solutions the UTU 3D printer occupies a smaller area meantime it prints on a much larger area.

4

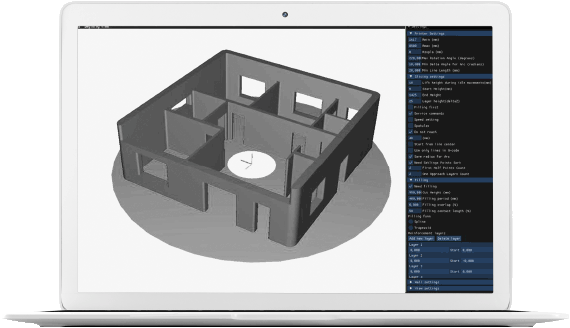

Innovative
software

The UTU 3D printer has a unique in-house software that creates higher accuracy and printing quality.

5

Easy
control

The UTU 3D printer is very easy to operate, there is no need to perform special maintenance with a large team.

6

Easy transportation and installation

Due to its relatively low weight (2100 kg) UTU 3D printer can be easily moved by crane on the construction site. The UTU 3D printer can be quickly installed withing 2-3 hours on the site and be ready for printing. The UTU 3D printer can be disassembled easily by dismantle its vertical column and be prepared for its convinient transportation. It can be loaded on the truck by crane or by truck’s manipulator.

7

Saving maintenance costs

The UTU 3D printer has a strong and rigid design, low number of its moving parts. Minimal maintenance reduces downtime and operating costs.

Innovative design solutions

Absence of hydraulic units

Hydraulic units are resource-consuming in operation and require special permission for the operator. Electric stepper motors and gears are used іnstead of hydraulics which ensure very high printing accuracy. Vertical and horizontal printing tolerances are less than 1 mm.

Placement of the mortar mixing unit at the end of the main boom

This is a unique engineer solution that balances the 3D printer and shortens the length of the mortar pipe thereby guaranteeing high printing quality.

Protection against mortar solidification in the pipe

The design of the 3D printer includes sun visors. This technical solution reduces the probability of the mortar pipe damage due to mortar solidification inside thus it reduces the amount of waste.

Reinforced vertical column

The column contains four vertical linear motion guides fixed by stiffeners along the entire length, which guarantees the necessary rigidity of the structure.

click
1/5

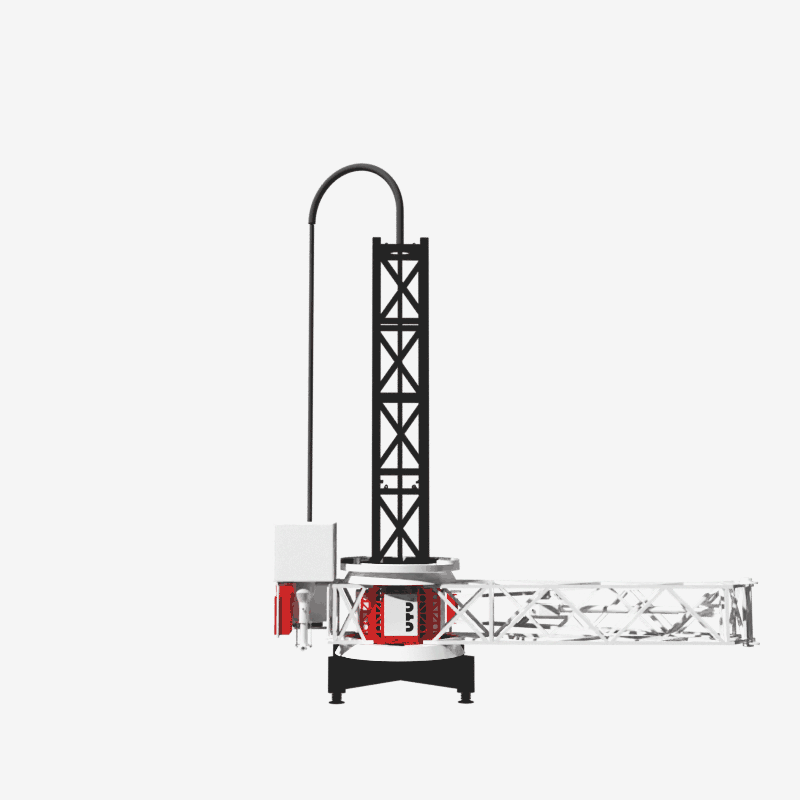

UTU 3D printer
for construction

Description

UTU is a 3D printer for construction that prints entire houses on a site. The 3D printer is designed to be quickly transported to the construction sites and then quickly be moved from place to place. UTU prints directly on the prepared foundation.

Technical specification

Overall dimensions:

with open arm position 10000 mm х 1750 mm х 7000 mm

with closed arm position 6000 mm х 1750 mm х 5500 mm

in transportation position 6000 mm х 1750 mm х 2300 mm

Printer weight 2100 kg

Minimal printing speed 20 сm/sec

Maximal printing speed 100 сm/sec

Maximal printing height 4,6 m

The maximal printing area without moving the 3D printer:

circle 220 m²

square 144 m²

Delivery terms

Shipping: worldwide
Delivery cost: upon request
Please, fill the form to get more information.

Download PDF certificate

The main advantages of
3D printing in construction

We are pleased to introduce you to innovative solutions in the world of construction - 3D printers that are changing the way buildings are built. Thanks to modern technologies, our printers provide high quality, speed and efficiency in the construction process. Forget about traditional methods that require a lot of time and resources. With our 3D printers, you can realize the most ambitious projects while gaining significant benefits.

  • People involved
  • The term of construction of walls with finishing 100m2

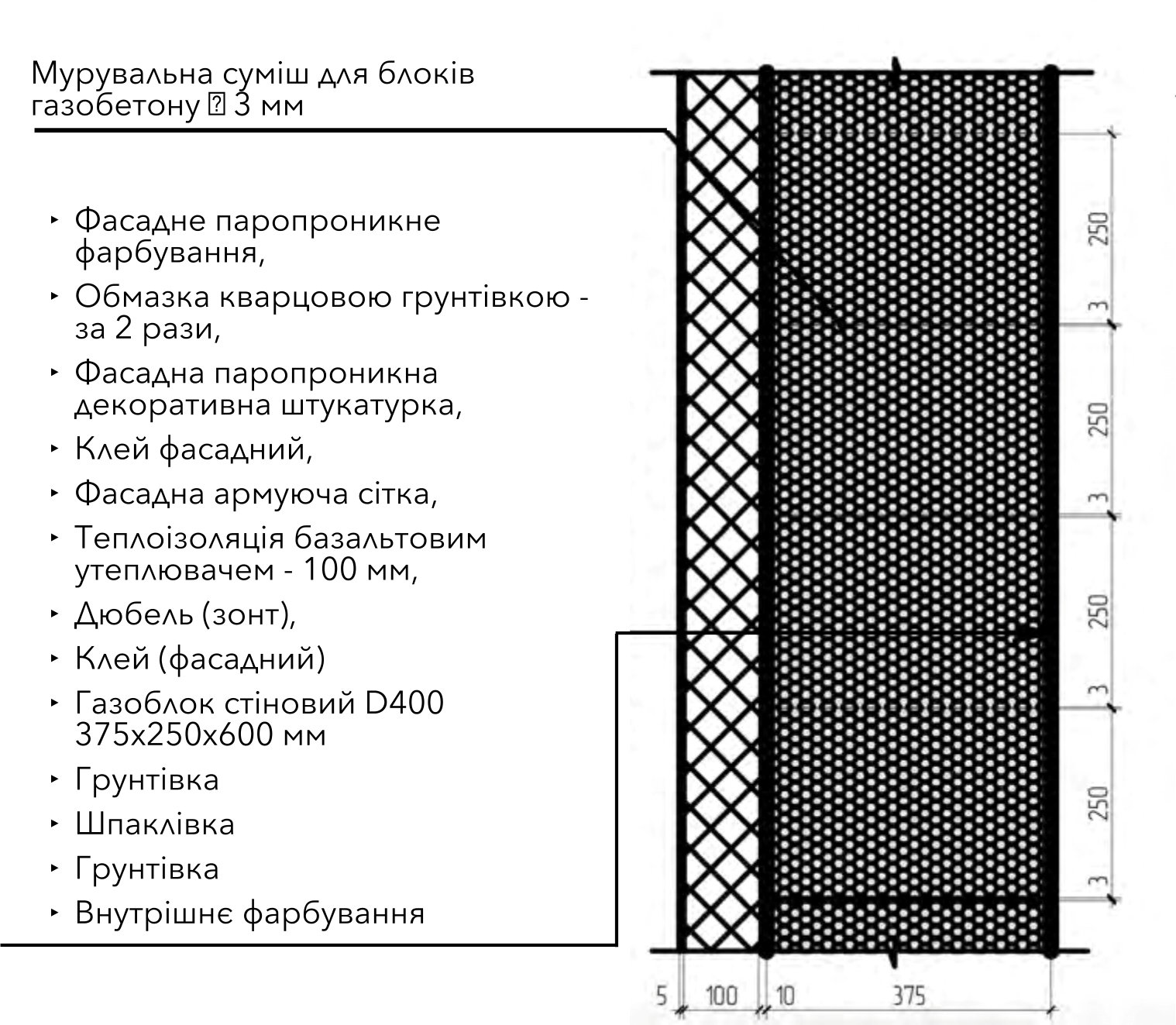

Aerated concrete walls

  • 6 persons
  • 26 days

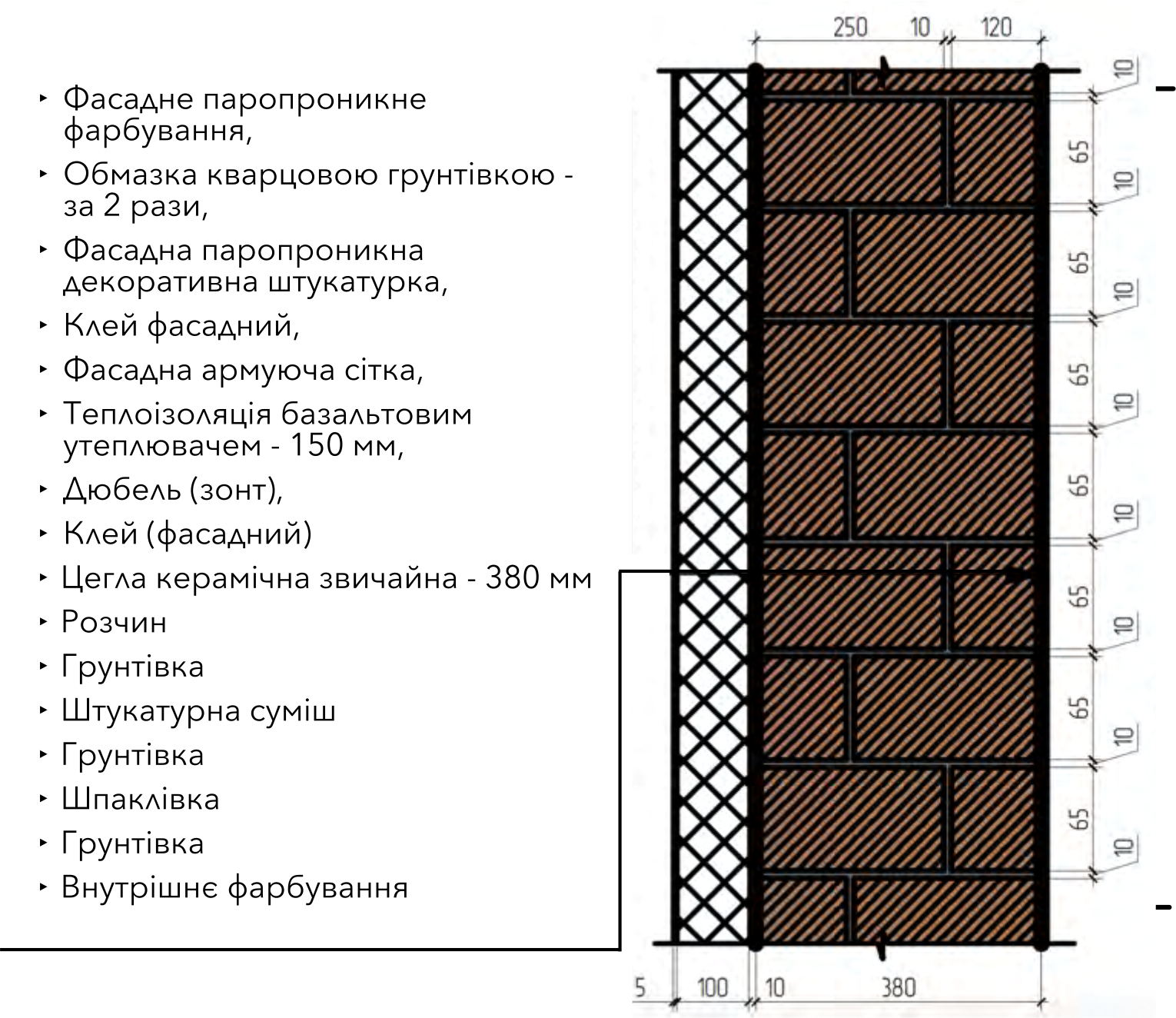

Brick walls

  • 8 persons
  • 44 days

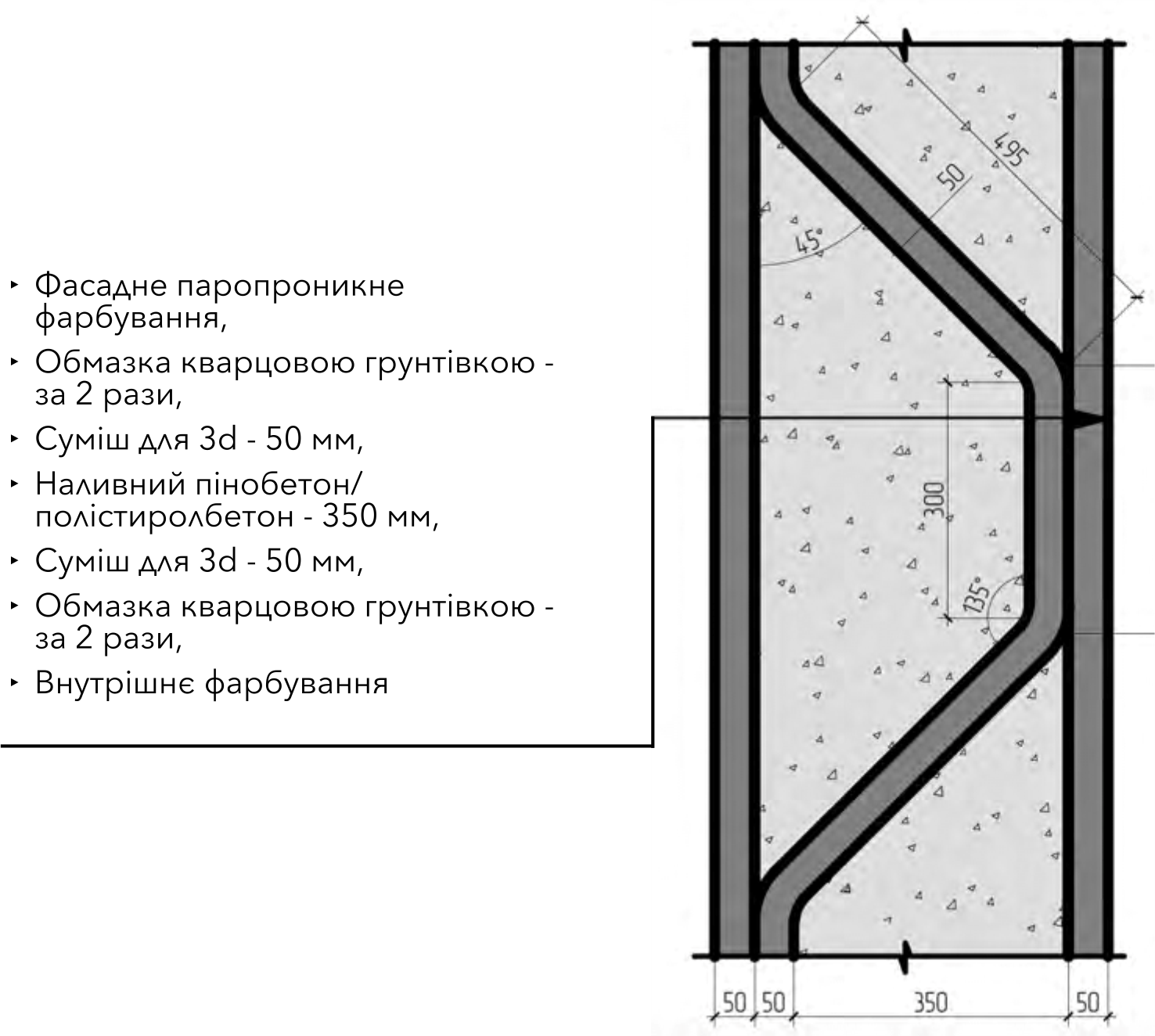

3D-друк

  • 4 людини
  • 12 діб

It is beneficial

in terms of time,
cost,
and people's involvement

Expanded view
foto

PURCHASE CONDITIONS

The cost of the printer starts from USD 355,000, depending on the configuration (+ VAT if sold in Ukraine).

Payment terms:

  • - 70% advance payment and 30% upon completion of production, before shipment.
  • - Delivery from Ukraine, Kyiv region
  • - Production time is approximately 4-5 months
foto
